Signing an edited image and maintaining its provenance
This topic is meant to show you how to handle signing an image when it’s been edited by your application. This could be necessary if your software is an image editor or something like a content management system that creates responsive images.
We’ll update the manifest definition file to indicate what kind of edits occurred in our application. Then, we’re going to update the settings.toml file we created in an earlier lesson to add trust configuration. This will be used in the validation of our ingredient. Finally, we configure our C2PA Tool command to include a parent ingredient and sign the asset.

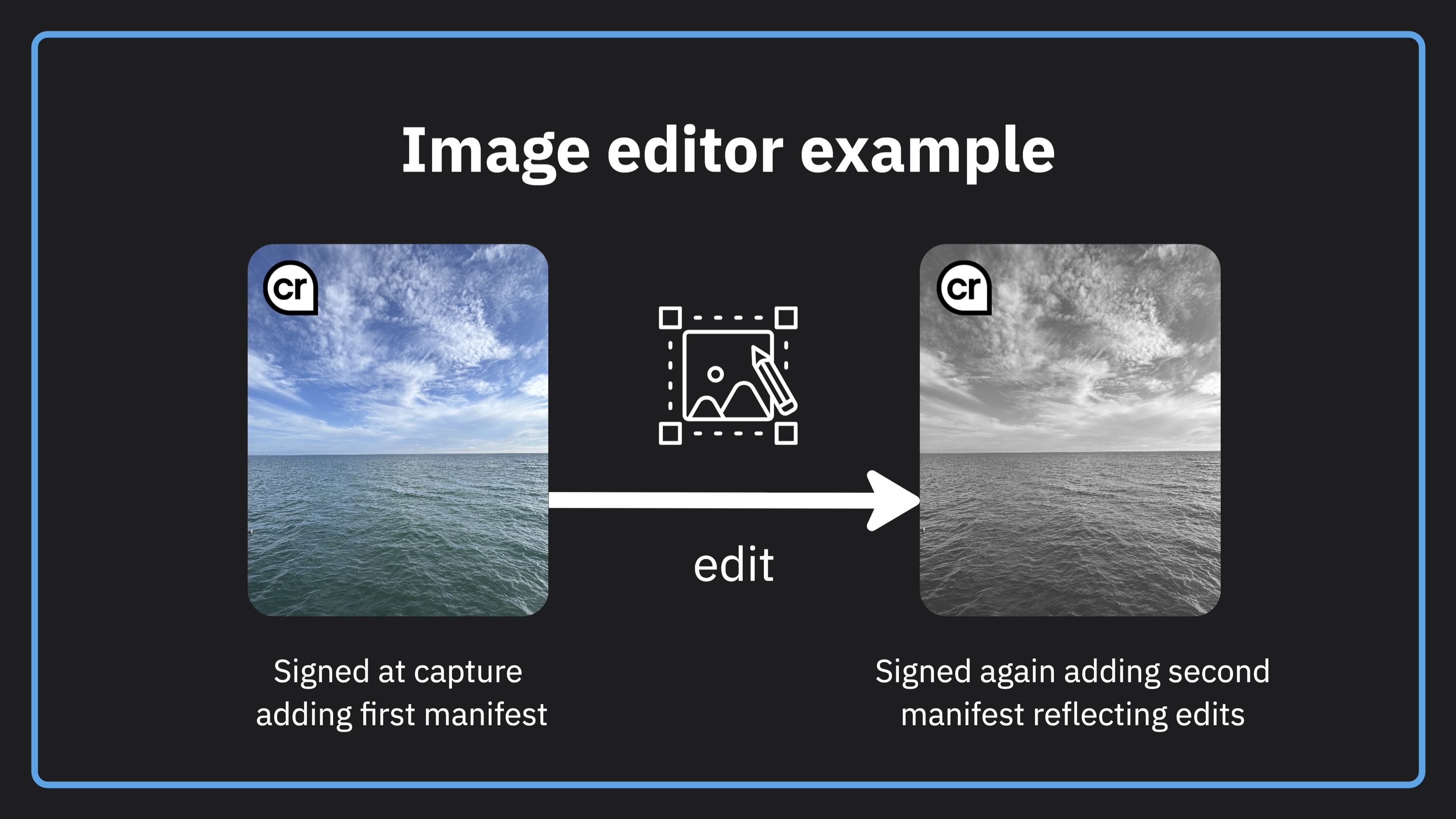

Example use case for this lesson
Code from the lesson
// manifest.json
{
"claim_generator_info":[{
"name": "Demo Editor App",
"version": "1.0.0"
}],
"assertions": [
{
"label": "c2pa.actions.v2",
"data": {
"actions": [
{
"action": "c2pa.color_adjustments"
}
]
}
}
]
}
# settings.toml
[builder]
created_assertion_labels = [
"c2pa.actions",
"c2pa.thumbnail.claim",
"c2pa.thumbnail.ingredient",
"c2pa.ingredient"
]
[builder.actions.auto_created_action]
enabled = false
[builder.actions.auto_opened_action]
enabled = true
[signer]
[signer.local]
alg = "es256"
sign_cert = """-----BEGIN CERTIFICATE-----
MIIChzCCAi6gAwIBAgIUcCTmJHYF8dZfG0d1UdT6/LXtkeYwCgYIKoZIzj0EAwIw
gYwxCzAJBgNVBAYTAlVTMQswCQYDVQQIDAJDQTESMBAGA1UEBwwJU29tZXdoZXJl
MScwJQYDVQQKDB5DMlBBIFRlc3QgSW50ZXJtZWRpYXRlIFJvb3QgQ0ExGTAXBgNV
BAsMEEZPUiBURVNUSU5HX09OTFkxGDAWBgNVBAMMD0ludGVybWVkaWF0ZSBDQTAe
Fw0yMjA2MTAxODQ2NDBaFw0zMDA4MjYxODQ2NDBaMIGAMQswCQYDVQQGEwJVUzEL
MAkGA1UECAwCQ0ExEjAQBgNVBAcMCVNvbWV3aGVyZTEfMB0GA1UECgwWQzJQQSBU
ZXN0IFNpZ25pbmcgQ2VydDEZMBcGA1UECwwQRk9SIFRFU1RJTkdfT05MWTEUMBIG
A1UEAwwLQzJQQSBTaWduZXIwWTATBgcqhkjOPQIBBggqhkjOPQMBBwNCAAQPaL6R
kAkYkKU4+IryBSYxJM3h77sFiMrbvbI8fG7w2Bbl9otNG/cch3DAw5rGAPV7NWky
l3QGuV/wt0MrAPDoo3gwdjAMBgNVHRMBAf8EAjAAMBYGA1UdJQEB/wQMMAoGCCsG
AQUFBwMEMA4GA1UdDwEB/wQEAwIGwDAdBgNVHQ4EFgQUFznP0y83joiNOCedQkxT
tAMyNcowHwYDVR0jBBgwFoAUDnyNcma/osnlAJTvtW6A4rYOL2swCgYIKoZIzj0E
AwIDRwAwRAIgOY/2szXjslg/MyJFZ2y7OH8giPYTsvS7UPRP9GI9NgICIDQPMKrE
LQUJEtipZ0TqvI/4mieoyRCeIiQtyuS0LACz
-----END CERTIFICATE-----
-----BEGIN CERTIFICATE-----
MIICajCCAg+gAwIBAgIUfXDXHH+6GtA2QEBX2IvJ2YnGMnUwCgYIKoZIzj0EAwIw
dzELMAkGA1UEBhMCVVMxCzAJBgNVBAgMAkNBMRIwEAYDVQQHDAlTb21ld2hlcmUx
GjAYBgNVBAoMEUMyUEEgVGVzdCBSb290IENBMRkwFwYDVQQLDBBGT1IgVEVTVElO
R19PTkxZMRAwDgYDVQQDDAdSb290IENBMB4XDTIyMDYxMDE4NDY0MFoXDTMwMDgy
NzE4NDY0MFowgYwxCzAJBgNVBAYTAlVTMQswCQYDVQQIDAJDQTESMBAGA1UEBwwJ
U29tZXdoZXJlMScwJQYDVQQKDB5DMlBBIFRlc3QgSW50ZXJtZWRpYXRlIFJvb3Qg
Q0ExGTAXBgNVBAsMEEZPUiBURVNUSU5HX09OTFkxGDAWBgNVBAMMD0ludGVybWVk
aWF0ZSBDQTBZMBMGByqGSM49AgEGCCqGSM49AwEHA0IABHllI4O7a0EkpTYAWfPM
D6Rnfk9iqhEmCQKMOR6J47Rvh2GGjUw4CS+aLT89ySukPTnzGsMQ4jK9d3V4Aq4Q
LsOjYzBhMA8GA1UdEwEB/wQFMAMBAf8wDgYDVR0PAQH/BAQDAgGGMB0GA1UdDgQW
BBQOfI1yZr+iyeUAlO+1boDitg4vazAfBgNVHSMEGDAWgBRembiG4Xgb2VcVWnUA
UrYpDsuojDAKBggqhkjOPQQDAgNJADBGAiEAtdZ3+05CzFo90fWeZ4woeJcNQC4B
84Ill3YeZVvR8ZECIQDVRdha1xEDKuNTAManY0zthSosfXcvLnZui1A/y/DYeg==
-----END CERTIFICATE-----
"""
# Private key
private_key = """-----BEGIN PRIVATE KEY-----
MIGHAgEAMBMGByqGSM49AgEGCCqGSM49AwEHBG0wawIBAQQgfNJBsaRLSeHizv0m
GL+gcn78QmtfLSm+n+qG9veC2W2hRANCAAQPaL6RkAkYkKU4+IryBSYxJM3h77sF
iMrbvbI8fG7w2Bbl9otNG/cch3DAw5rGAPV7NWkyl3QGuV/wt0MrAPDo
-----END PRIVATE KEY-----
"""
tsa_url = "http://timestamp.digicert.com"
[trust]
trust_anchors = """
C2PA Test Signing Cert
-----BEGIN CERTIFICATE-----
MIICUzCCAfmgAwIBAgIUdmkq4byvgk2FSnddHqB2yjoD68gwCgYIKoZIzj0EAwIw
dzELMAkGA1UEBhMCVVMxCzAJBgNVBAgMAkNBMRIwEAYDVQQHDAlTb21ld2hlcmUx
GjAYBgNVBAoMEUMyUEEgVGVzdCBSb290IENBMRkwFwYDVQQLDBBGT1IgVEVTVElO
R19PTkxZMRAwDgYDVQQDDAdSb290IENBMB4XDTIyMDYxMDE4NDY0MFoXDTMyMDYw
NzE4NDY0MFowdzELMAkGA1UEBhMCVVMxCzAJBgNVBAgMAkNBMRIwEAYDVQQHDAlT
b21ld2hlcmUxGjAYBgNVBAoMEUMyUEEgVGVzdCBSb290IENBMRkwFwYDVQQLDBBG
T1IgVEVTVElOR19PTkxZMRAwDgYDVQQDDAdSb290IENBMFkwEwYHKoZIzj0CAQYI
KoZIzj0DAQcDQgAEre/KpcWwGEHt+mD4xso3xotRnRx2IEsMoYwVIKI7iEJrDEye
PcvJuBywA0qiMw2yvAvGOzW/fqUTu1jABrFIk6NjMGEwHQYDVR0OBBYEFF6ZuIbh
eBvZVxVadQBStikOy6iMMB8GA1UdIwQYMBaAFF6ZuIbheBvZVxVadQBStikOy6iM
MA8GA1UdEwEB/wQFMAMBAf8wDgYDVR0PAQH/BAQDAgGGMAoGCCqGSM49BAMCA0gA
MEUCIHBC1xLwkCWSGhVXFlSnQBx9cGZivXzCbt8BuwRqPSUoAiEAteZQDk685yh9
jgOTkp4H8oAmM1As+qlkRK2b+CHAQ3k=
-----END CERTIFICATE-----
Digicert Trusted Timestamp Sha256 CA
-----BEGIN CERTIFICATE-----
MIIGrjCCBJagAwIBAgIQBzY3tyRUfNhHrP0oZipeWzANBgkqhkiG9w0BAQsFADBi
MQswCQYDVQQGEwJVUzEVMBMGA1UEChMMRGlnaUNlcnQgSW5jMRkwFwYDVQQLExB3
d3cuZGlnaWNlcnQuY29tMSEwHwYDVQQDExhEaWdpQ2VydCBUcnVzdGVkIFJvb3Qg
RzQwHhcNMjIwMzIzMDAwMDAwWhcNMzcwMzIyMjM1OTU5WjBjMQswCQYDVQQGEwJV
UzEXMBUGA1UEChMORGlnaUNlcnQsIEluYy4xOzA5BgNVBAMTMkRpZ2lDZXJ0IFRy
dXN0ZWQgRzQgUlNBNDA5NiBTSEEyNTYgVGltZVN0YW1waW5nIENBMIICIjANBgkq
hkiG9w0BAQEFAAOCAg8AMIICCgKCAgEAxoY1BkmzwT1ySVFVxyUDxPKRN6mXUaHW
0oPRnkyibaCwzIP5WvYRoUQVQl+kiPNo+n3znIkLf50fng8zH1ATCyZzlm34V6gC
ff1DtITaEfFzsbPuK4CEiiIY3+vaPcQXf6sZKz5C3GeO6lE98NZW1OcoLevTsbV1
5x8GZY2UKdPZ7Gnf2ZCHRgB720RBidx8ald68Dd5n12sy+iEZLRS8nZH92GDGd1f
tFQLIWhuNyG7QKxfst5Kfc71ORJn7w6lY2zkpsUdzTYNXNXmG6jBZHRAp8ByxbpO
H7G1WE15/tePc5OsLDnipUjW8LAxE6lXKZYnLvWHpo9OdhVVJnCYJn+gGkcgQ+ND
Y4B7dW4nJZCYOjgRs/b2nuY7W+yB3iIU2YIqx5K/oN7jPqJz+ucfWmyU8lKVEStY
dEAoq3NDzt9KoRxrOMUp88qqlnNCaJ+2RrOdOqPVA+C/8KI8ykLcGEh/FDTP0kyr
75s9/g64ZCr6dSgkQe1CvwWcZklSUPRR8zZJTYsg0ixXNXkrqPNFYLwjjVj33GHe
k/45wPmyMKVM1+mYSlg+0wOI/rOP015LdhJRk8mMDDtbiiKowSYI+RQQEgN9XyO7
ZONj4KbhPvbCdLI/Hgl27KtdRnXiYKNYCQEoAA6EVO7O6V3IXjASvUaetdN2udIO
a5kM0jO0zbECAwEAAaOCAV0wggFZMBIGA1UdEwEB/wQIMAYBAf8CAQAwHQYDVR0O
BBYEFLoW2W1NhS9zKXaaL3WMaiCPnshvMB8GA1UdIwQYMBaAFOzX44LScV1kTN8u
Zz/nupiuHA9PMA4GA1UdDwEB/wQEAwIBhjATBgNVHSUEDDAKBggrBgEFBQcDCDB3
BggrBgEFBQcBAQRrMGkwJAYIKwYBBQUHMAGGGGh0dHA6Ly9vY3NwLmRpZ2ljZXJ0
LmNvbTBBBggrBgEFBQcwAoY1aHR0cDovL2NhY2VydHMuZGlnaWNlcnQuY29tL0Rp
Z2lDZXJ0VHJ1c3RlZFJvb3RHNC5jcnQwQwYDVR0fBDwwOjA4oDagNIYyaHR0cDov
L2NybDMuZGlnaWNlcnQuY29tL0RpZ2lDZXJ0VHJ1c3RlZFJvb3RHNC5jcmwwIAYD
VR0gBBkwFzAIBgZngQwBBAIwCwYJYIZIAYb9bAcBMA0GCSqGSIb3DQEBCwUAA4IC
AQB9WY7Ak7ZvmKlEIgF+ZtbYIULhsBguEE0TzzBTzr8Y+8dQXeJLKftwig2qKWn8
acHPHQfpPmDI2AvlXFvXbYf6hCAlNDFnzbYSlm/EUExiHQwIgqgWvalWzxVzjQEi
Jc6VaT9Hd/tydBTX/6tPiix6q4XNQ1/tYLaqT5Fmniye4Iqs5f2MvGQmh2ySvZ18
0HAKfO+ovHVPulr3qRCyXen/KFSJ8NWKcXZl2szwcqMj+sAngkSumScbqyQeJsG3
3irr9p6xeZmBo1aGqwpFyd/EjaDnmPv7pp1yr8THwcFqcdnGE4AJxLafzYeHJLtP
o0m5d2aR8XKc6UsCUqc3fpNTrDsdCEkPlM05et3/JWOZJyw9P2un8WbDQc1PtkCb
ISFA0LcTJM3cHXg65J6t5TRxktcma+Q4c6umAU+9Pzt4rUyt+8SVe+0KXzM5h0F4
ejjpnOHdI/0dKNPH+ejxmF/7K9h+8kaddSweJywm228Vex4Ziza4k9Tm8heZWcpw
8De/mADfIBZPJ/tgZxahZrrdVcA6KYawmKAr7ZVBtzrVFZgxtGIJDwq9gdkT/r+k
0fNX2bwE+oLeMt8EifAAzV3C+dAjfwAL5HYCJtnwZXZCpimHCUcr5n8apIUP/JiW
9lVUKx+A+sDyDivl1vupL0QVSucTDh3bNzgaoSv27dZ8/A==
-----END CERTIFICATE-----
-----BEGIN CERTIFICATE-----
MIIGtDCCBJygAwIBAgIQDcesVwX/IZkuQEMiDDpJhjANBgkqhkiG9w0BAQsFADBi
MQswCQYDVQQGEwJVUzEVMBMGA1UEChMMRGlnaUNlcnQgSW5jMRkwFwYDVQQLExB3
d3cuZGlnaWNlcnQuY29tMSEwHwYDVQQDExhEaWdpQ2VydCBUcnVzdGVkIFJvb3Qg
RzQwHhcNMjUwNTA3MDAwMDAwWhcNMzgwMTE0MjM1OTU5WjBpMQswCQYDVQQGEwJV
UzEXMBUGA1UEChMORGlnaUNlcnQsIEluYy4xQTA/BgNVBAMTOERpZ2lDZXJ0IFRy
dXN0ZWQgRzQgVGltZVN0YW1waW5nIFJTQTQwOTYgU0hBMjU2IDIwMjUgQ0ExMIIC
IjANBgkqhkiG9w0BAQEFAAOCAg8AMIICCgKCAgEAtHgx0wqYQXK+PEbAHKx126NG
aHS0URedTa2NDZS1mZaDLFTtQ2oRjzUXMmxCqvkbsDpz4aH+qbxeLho8I6jY3xL1
IusLopuW2qftJYJaDNs1+JH7Z+QdSKWM06qchUP+AbdJgMQB3h2DZ0Mal5kYp77j
YMVQXSZH++0trj6Ao+xh/AS7sQRuQL37QXbDhAktVJMQbzIBHYJBYgzWIjk8eDrY
hXDEpKk7RdoX0M980EpLtlrNyHw0Xm+nt5pnYJU3Gmq6bNMI1I7Gb5IBZK4ivbVC
iZv7PNBYqHEpNVWC2ZQ8BbfnFRQVESYOszFI2Wv82wnJRfN20VRS3hpLgIR4hjzL
0hpoYGk81coWJ+KdPvMvaB0WkE/2qHxJ0ucS638ZxqU14lDnki7CcoKCz6eum5A1
9WZQHkqUJfdkDjHkccpL6uoG8pbF0LJAQQZxst7VvwDDjAmSFTUms+wV/FbWBqi7
fTJnjq3hj0XbQcd8hjj/q8d6ylgxCZSKi17yVp2NL+cnT6Toy+rN+nM8M7LnLqCr
O2JP3oW//1sfuZDKiDEb1AQ8es9Xr/u6bDTnYCTKIsDq1BtmXUqEG1NqzJKS4kOm
xkYp2WyODi7vQTCBZtVFJfVZ3j7OgWmnhFr4yUozZtqgPrHRVHhGNKlYzyjlroPx
ul+bgIspzOwbtmsgY1MCAwEAAaOCAV0wggFZMBIGA1UdEwEB/wQIMAYBAf8CAQAw
HQYDVR0OBBYEFO9vU0rp5AZ8esrikFb2L9RJ7MtOMB8GA1UdIwQYMBaAFOzX44LS
cV1kTN8uZz/nupiuHA9PMA4GA1UdDwEB/wQEAwIBhjATBgNVHSUEDDAKBggrBgEF
BQcDCDB3BggrBgEFBQcBAQRrMGkwJAYIKwYBBQUHMAGGGGh0dHA6Ly9vY3NwLmRp
Z2ljZXJ0LmNvbTBBBggrBgEFBQcwAoY1aHR0cDovL2NhY2VydHMuZGlnaWNlcnQu
Y29tL0RpZ2lDZXJ0VHJ1c3RlZFJvb3RHNC5jcnQwQwYDVR0fBDwwOjA4oDagNIYy
aHR0cDovL2NybDMuZGlnaWNlcnQuY29tL0RpZ2lDZXJ0VHJ1c3RlZFJvb3RHNC5j
cmwwIAYDVR0gBBkwFzAIBgZngQwBBAIwCwYJYIZIAYb9bAcBMA0GCSqGSIb3DQEB
CwUAA4ICAQAXzvsWgBz+Bz0RdnEwvb4LyLU0pn/N0IfFiBowf0/Dm1wGc/Do7oVM
Y2mhXZXjDNJQa8j00DNqhCT3t+s8G0iP5kvN2n7Jd2E4/iEIUBO41P5F448rSYJ5
9Ib61eoalhnd6ywFLerycvZTAz40y8S4F3/a+Z1jEMK/DMm/axFSgoR8n6c3nuZB
9BfBwAQYK9FHaoq2e26MHvVY9gCDA/JYsq7pGdogP8HRtrYfctSLANEBfHU16r3J
05qX3kId+ZOczgj5kjatVB+NdADVZKON/gnZruMvNYY2o1f4MXRJDMdTSlOLh0HC
n2cQLwQCqjFbqrXuvTPSegOOzr4EWj7PtspIHBldNE2K9i697cvaiIo2p61Ed2p8
xMJb82Yosn0z4y25xUbI7GIN/TpVfHIqQ6Ku/qjTY6hc3hsXMrS+U0yy+GWqAXam
4ToWd2UQ1KYT70kZjE4YtL8Pbzg0c1ugMZyZZd/BdHLiRu7hAWE6bTEm4XYRkA6T
l4KSFLFk43esaUeqGkH/wyW4N7OigizwJWeukcyIPbAvjSabnf7+Pu0VrFgoiovR
Diyx3zEdmcif/sYQsfch28bZeUz2rtY/9TCA6TD8dC3JE3rYkrhLULy7Dc90G6e8
BlqmyIjlgp2+VqsS9/wQD7yFylIz0scmbKvFoW2jNrbM1pD2T7m3XA==
-----END CERTIFICATE-----
"""
# String to trust configuration.
trust_config = """
//id-kp-emailProtection
1.3.6.1.5.5.7.3.4
//id-kp-documentSigning
1.3.6.1.5.5.7.3.36
//id-kp-timeStamping
1.3.6.1.5.5.7.3.8
//id-kp-OCSPSigning
1.3.6.1.5.5.7.3.9
// MS C2PA Signing
1.3.6.1.4.1.311.76.59.1.9
// c2pa-kp-claimSigning
1.3.6.1.4.1.62558.2.1
"""
# c2patool command to sign the image
./c2patool --settings config/settings.toml edit-unsigned.jpg \
-p capture-signed.jpg -m config/manifest.json -o edit-signed.jpg
Getting more help
You can access the CAI Docs to learn more about implementing Content Credentials. If you have questions about this video, there is a forum set up on the CAI Discord for each video. You can access discussion for this video here. We would love to see your questions there!
